Cooking Process

Select product

Batchcooker"Soy-Boy"

For "High-mix Small-lot production".
Products are made as specified groups or amounts, within a time frame.

Continuouscooker"Super Steam Line M-II"

For "Low-mix Large lot production".
Products are consistently produced without interruptions.

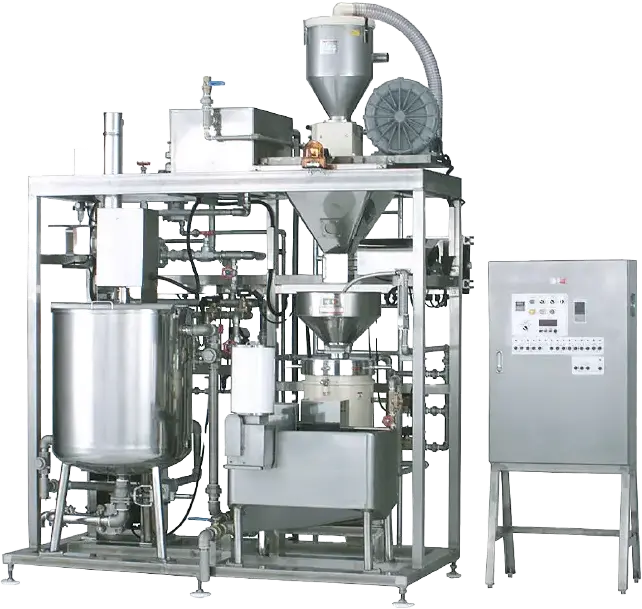

Soy-Boy

Batch Production/Medium Scale

Designed for silken/firm tofu and deep-fried tofu

[특징]

Heating with a large amount of low-pressure steam for a short time makes soymilk flavor rich. MASE-designed agitator helps heating evenly.
Non-defoamer soymilk production as an option.
Semi-automatic type: Feeding soaked soybeans manually.
Automated processes from grinding to heating.
Full-automatic type: Fully automated processes
Customizable: Single, double, or triple cookers.

Capacity (Example)

The capacity varies by the milk brix, heating temp., and time.
Electrical capacity and sizes vary by the specifications

Size	Regular	Large
Type	Single	Single	Double	Triple
Dry beans (w/defoamer)	48kg /H	78kg /H	180kg /H	270kg /H
Dry beans (w/o defoamer)	30kg /H	60kg /H	120kg /H	180kg /H
전기 용량	4.6 KW	7.4 KW	9.7 KW	10.4 KW
지름 W×D×H(mm)	1,800x1,000x2,650	2,500x1,200x3,200	2,500x1,200x3,200	4,500x1,200x3,200

Soy-Boy Line(english)

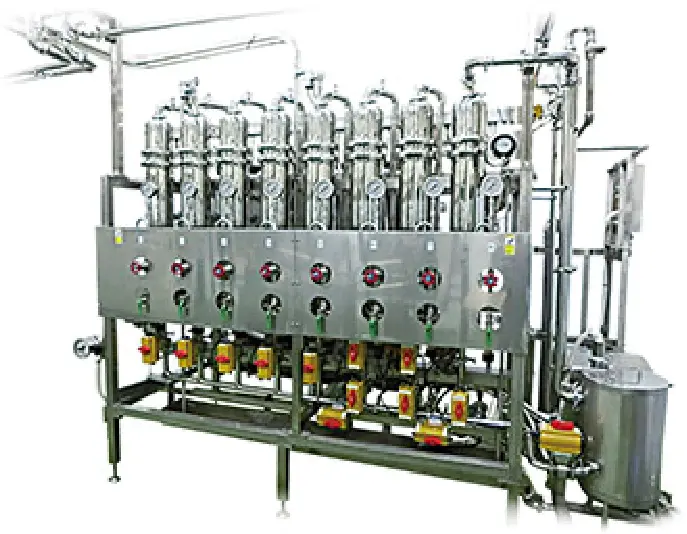

슈퍼 스팀 라인 M-Ⅱ

연속 생산 / 대량 규모

연두부, 목면두부, 유부를 위해 디자인 되었습니다.

[특징]

3가지 타입의 가열 방식과 자동 스팀 컨트롤러를 탑재했습니다.
스팀은 비례 제어 밸브로 자동 조절되어 편리합니다.
비례 제어 밸브가 없는 경제적인 사양도 선택 가능합니다.
옵션으로 무소포제(무기포) 대응도 가능합니다.

생산 능력 (예시)

생산 능력은 대두의 종류와 가수량에 의해 변합니다.

유소포제				무소포제
모델	용량	건식 대두	지름 W×D×H(mm)	모델	용량	건식 대두	지름 W×D×H(mm)
M-II40	227L	240kg/h	2,500x1,150x2,600	M-II40N	249L	240kg/h	2,750x1,150x2,600
M-II50	249L	300kg/h	2,750x1,150x2,600	M-II50N	271L	300kg/h	3,000x1,150x2,600
M-II60	271L	360kg/h	3,000x1,150x2,600	M-II60N	293L	360kg/h	3,250x1,150x2,600

M-II Line(english)
